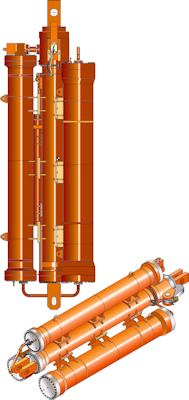

Designed as a tension compensator for offshore floating drilling vessels when the drill pipe or casing is latched to the well or for operations requiring minimum motion.
This passive line compensation system mitigates the risk of lockup of the primary heave compensation system. When a lockup occurs, the DSC automatically activates and takes overcompensation.
Features
- Nitrogen gas for APVs.Single lift for installation.
- Tension variation ± 5% (at one-meter heave and 10 second periods).
- Remote cylinder locking.
Specifications
- 750 Ton Static Load
- 750T static support with 500T compensating support
- 20 feet of inline vertical stroke
- Self-contained APV for more deck space
- 340.54 inches retracted
- 580.54 inches extended
- Weight 64 Kps
- ABS and DNV certified to API Spec
